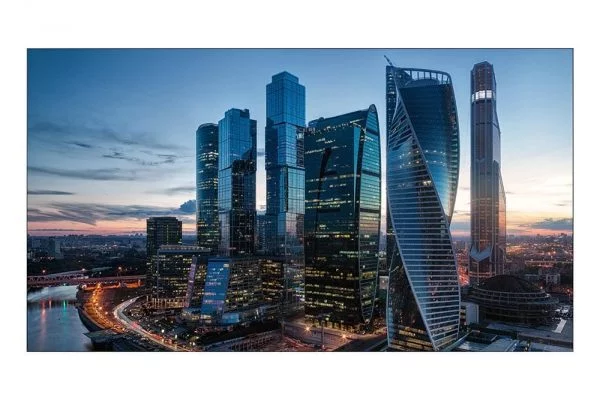

İnce derinliğe ve son derece dar çerçeveye sahip bir video wall oluşturmada nihai esneklik. 1,8 mm’lik son derece dar çerçeveden çerçeveye tasarım, kusursuz görsel deneyim yaratır.
| Çapraz boyut 55” |
| Panel Çözünürlüğü 1920 * 1080 (Full HD) |
| Parlaklık 500nit |
İnce derinliğe ve son derece dar çerçeveye sahip bir video wall oluşturmada nihai esneklik. 1,8 mm’lik son derece dar çerçeveden çerçeveye tasarım, kusursuz görsel deneyim yaratır.
| Çapraz boyut 55” |
| Panel Çözünürlüğü 1920 * 1080 (Full HD) |
| Parlaklık 500nit |
| Diagonal Size | 55 | ||
| Type | IPS | ||
| Resolution | 1920*1080 (Full HD) | ||
| Pixel Pitch(mm) | 0.63mm(H)*0.63mm(V) | ||
| Active Display Area(mm) | 1209.6 * 680.4 mm | ||
| Brightness(Typ.) | 500 nit | ||
| Contrast Ratio | 1200:1 | ||
| Viewing Angle(H/V) | 178/178 | ||
| Response Time(G-to-G) | 8ms | ||
| Display Colors | 8 bit – 16.7M | ||
| Color Gamut | 72% | ||
| Operation Hour | 24/7 | ||
| Haze | 28% | ||
| Display | |||
| Dynamic C/R | 500,000:1 | ||
| H-Scanning Frequency | 57.3kHz ~ 70kHz | ||
| V-Scanning Frequency | 48Hz ~ 75Hz | ||
| Maximum Pixel Frequency | 77MHz | ||

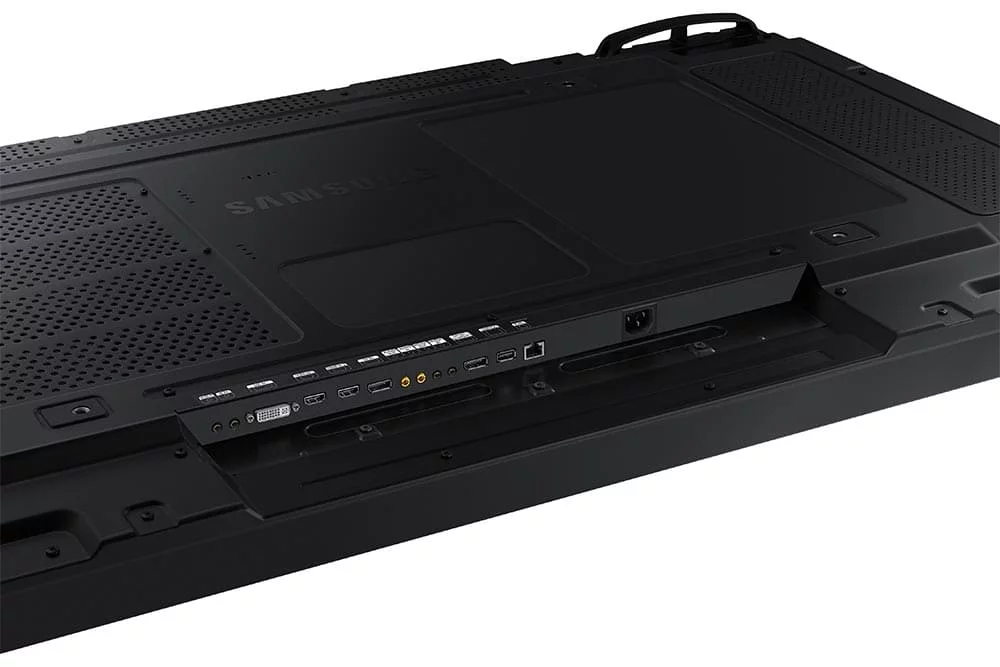

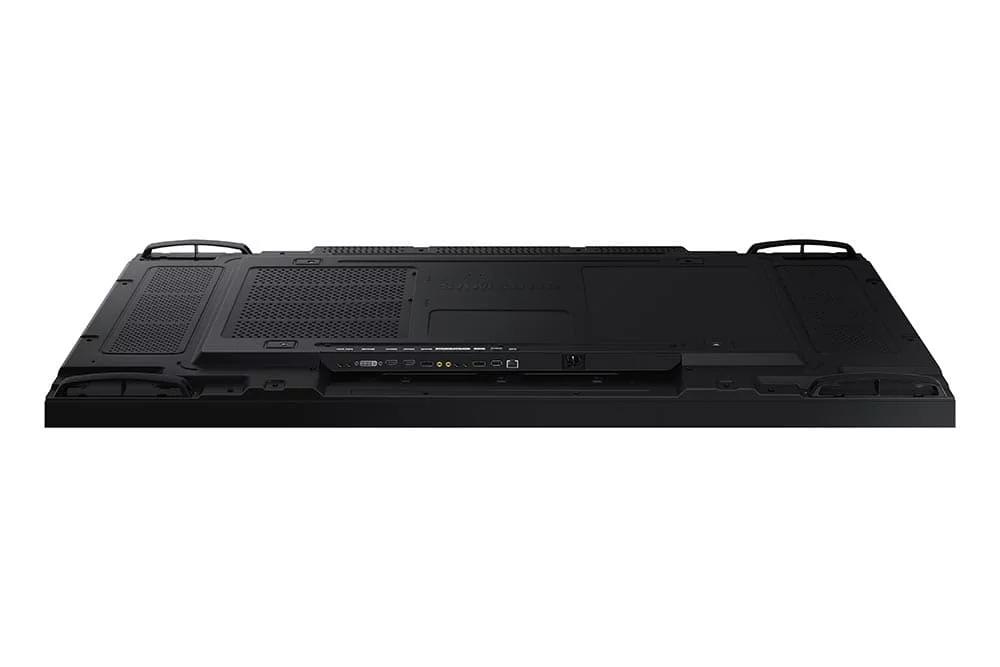

| Connectivity | |||
| Input | |||
| RGB | DVI-D, Display Port 1.2 | ||
| Video | HDMI 2.0 (2) | ||
| HDCP | HDCP 2.2 | ||
| Audio | Stereo mini Jack | ||
| USB | Only F/W upgrade | ||
| Output | |||
| RGB | DP1.2(Loop-out) | ||
| Audio | Stereo mini Jack | ||
| External Control | RS232C(in/out), RJ45 | ||
| External Sensor | Detachable type(IR) | ||
| Power | |||
| Type | Internal | ||
| Power Supply | AC 100 – 240 V, 50/60 Hz | ||
| Power Consumption | |||
| Max[W/h] | 242W | ||
| Typical[W/h] | 90W | ||
| BTU(Max) | 825.0 | ||
| Sleep mode | less than 0.5W | ||
| Off mode | less than 0.5W | ||
| Mechanical Specification | |||
| Dimension (mm) | |||
| Set | 1211.5 x 682.3 x 70 | ||
| Package | 1398 x 844 x 257 | ||
| Weight (kg) | |||
| Set | 19.Nis | ||
| Package | 27.Haz | ||
| Bezel Width (mm) | 0.9mm (Even) | ||
| Operation | |||
| Operating Temperature | 0 ℃ ~ 40 ℃ | Humidity | 10 % ~ 80 % |
| Feature | |||
| Key Features | Extreme Narrow Bezel | ||
| Special Features | ACM Support(Advanced Color Management), Auto Source Switching & Recovery, Haze 28%, Temperature Sensor, RS232C/RJ45 MDC,Plug and Play (DDC2B), Video Wall(15×15(OSD)), Video Wall Daisy Chain(10×10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(Supporting UHD Resolution, HDCP support), Smart F/W update, Clock Battery(168hrs Clock Keeping) IP5X tested, EMC Class A | ||
| Certification | |||
| Safety | UL (USA) : UL 60950-1 CSA (Canada) : CSA C22.2 No. 60950-1 TUV (Germany) : EN60950-1 NEMKO (Norway) : EN60950-1 KC (Korea) : K60950-1 CCC (China) : GB4943.1-2011 PSB (Singapore) : IEC60950-1 GOST (Russia) : IEC60950-1, EN55022 SIQ (Slovenia) : IEC60950-1, EN55022 PCBC (Poland) : IEC60590-1, EN55022 NOM (Mexico) : NOM-019-SCFI-1993 IRAM (Argentina) :IEC60950-1 SASO (Saudi Arabia) : IEC60950-1 | ||
| EMC | FCC (USA) FCC Part 15, Subpart B class A CE (Europe) EN55022, EN55024 VCCI (Japan) VCCI CISPR32:2016 KCC (Korea) :KN32, KN35 BSMI (Taiwan) : CNS13438 (CISPR22) C-Tick (Australia) : AS/NZS CISPR32:2015 CCC(China) :GB9254-2008, GB17625.1-2012 | ||
| IP Rating | IP5X | ||
| Accessory | |||
| Included | Quick Setup Guide, Warranty Card, DP cable, stereo to DB9 cable, Power Cord, Remote Controller, Batteries, External IR | ||
| Optional | |||
| Stand | N/A | ||
| Mount | WMN-55VD | ||
| Specialty | N/A | ||
| Media Player | |||
| Media Player | Signage player box | ||
