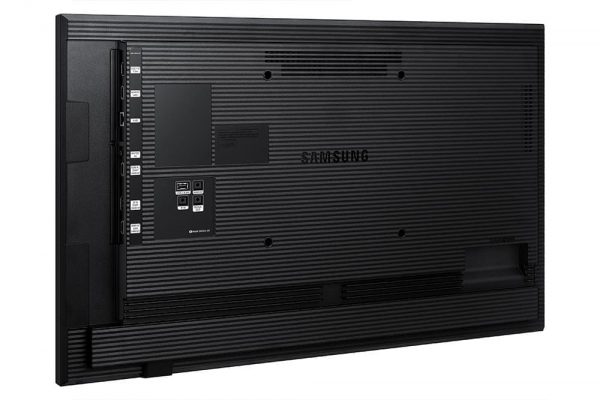

QM32R Samsung Digital Signage Ekran
QM32R Samsung Digital Signage Ekran
400nit parlaklığı destekleyen ince ve simetrik tasarıma sahip hepsi bir arada digital signage ekran.
| Çapraz boyut 32 ” |
| çözünürlük 1920 * 1080 (Tam HD) |
| Parlaklık 400nit |
| Panel | |||
| Diagonal Size | 32 | ||
| Type | Edge LED BLU | ||
| Resolution | 1920*1080 (Full HD) | ||
| Pixel Pitch(mm) | 0.360(H) x0.360(V) | ||
| Active Display Area(mm) | 698.4(H) x 392.85(V) | ||
| Brightness(Typ.) | 400 nit | ||
| Contrast Ratio | 5000:1 | ||
| Viewing Angle(H/V) | 178/178 | ||
| Response Time(G-to-G) | 8ms(Typ.) | ||
| Display Colors | 16.7M(True Display) 1.07B(Ditherd 10bit) | ||
| Color Gamut | 72% | ||
| Operation Hour | 24/7 | ||
| Haze | 2% | ||
| Display | |||
| Dynamic C/R | MEGA | ||
| H-Scanning Frequency | 30 ~ 81kHZ | ||
| V-Scanning Frequency | 48 ~ 75HZ | ||
| Maximum Pixel Frequency | 594MHz | ||
| Sound | |||
| Speaker Type | Built in Speaker(10W + 10W) | ||
| Connectivity | |||
| Input | |||
| RGB | Display Port 1.2 (1) | ||
| Video | HDMI 2.0 (1) | ||
| HDCP | HDCP2.2 | ||
| Audio | Stereo mini Jack, HDMI | ||
| USB | USB 2.0 x 2 | ||
| Output | |||
| RGB | HDMI 2.0 (Loop-out) | ||
| Audio | Stereo mini Jack | ||
| External Control | RS232C(in/out) thru stereo jack, RJ45 | ||
| External Sensor | IR | ||
| Power | |||
| Type | Internal | ||
| Power Supply | AC 100 – 240 V~ (+/- 10 %), 50/60 Hz | ||
| Power Consumption | |||
| Max[W/h] | 72 | ||
| Typical[W/h] | 44 | ||
| Rating[W/h] | 65 | ||
| BTU(Max) | 245.5 | ||
| Sleep mode | 0.5 | ||
| Mechanical Specification | |||
| Dimension (mm) | |||
| Set | 725.1 x 419.6 x 34.6 | ||
| Package | 812 x 513 x 120 | ||
| Weight (kg) | |||
| Set | 05.Tem | ||
| Package | 8.0 | ||
| Stand Type | Foot Stand (Optional) | ||
| Bezel Width (mm) | 8.8mm(U/L/R/B) | ||
| Operation | |||
| Operating Temperature | 0 ℃ ~ 40 ℃ | Humidity | 10 % ~ 80 % |
| Feature | |||
| Key Features | FHD Signage Display Slim & Light Signage with Built-in MagicInfo S6, SSSP 6.0 | ||
| Special Features | H/W:Temperature Sensor,Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W 2ch), Video Wall Daisy Chain(HDCP2.2:4EA,HDCP1.4:7EA), IP5x Rating, Wi-Fi/BT S/W:Auto Source Switching & Recovery, LFD Home UI, Button Lock, Hot key option, Plug&Play (Initial Setting) | ||
| Internal Player | Processor | Cortex A72 1.7GHz Quad-Core CPU | |
| On-Chip Cache Memory | L1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB | ||
| Clock Speed | 1.7GHz | ||
| Main Memory Interface | 2.5GB LPDDR4 1.5GHz 64bit | ||
| Graphics | Graphic resolution : 1920×1080 Output resolution : 3840×2160 (Scale up from graphic processing result.) | ||
| Storage (FDM) | 8GB (3.88GB Occupied by O/S, 4.12GB Available) | ||
| Multimedia | *Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG | ||
| IO Ports | USB 2.0 | ||
| Operating System | Tizen 4.0 (VDLinux) | ||
| Certification | |||
| Safety | 60950-1 | ||
| EMC | Class B | ||
| Security | 802.1x (WPA2 Enterprise) : EAP-TLS, EAP-TTLS, EAP-PEAP | ||
| Accessory | |||
| Included | Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries | ||
| Optional | |||
| Stand | No | ||
| Mount | WMN4277SEWMN6575SE | ||
| Specialty | CML450K | ||
Boyut32"
MarkaSamsung
Parlaklık400 Nit
